Our exclusive Cool Climate Series offers the ultimate in climate-control for Large, Mid-Size, and Small Mass-Transit vehicles. Our high-efficiency designs feature low-noise, lightweight construction for unparalleled passenger comfort. We offer 3 designs to suit your vehicles.

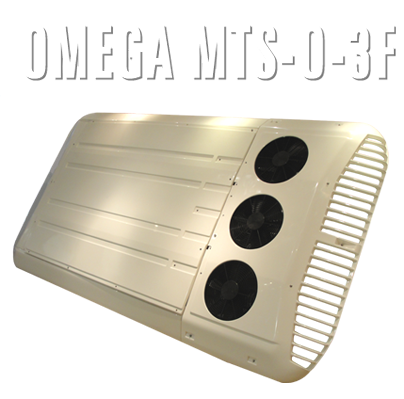

PERFECT FOR LARGER VEHICLES

  • Large size air conditioning unit
  • Installs on rooftop
  • Waterproof; handles extreme temp (up to 55°C)
  • Blower speed can be manually controlled
  • Cooling capacity: 120,000 BTU/hr
  • Maximum air flow: 6,600 m/h (free flowing)
  • Power consumption: 68 amp (at 24 VDC)
  • Weight (approx.): 353 lbs
  • Size (approx.): 9' 8 ½" L x 5' 10" W
  • Compressor:
    - single circuit: 611 cc/u; ND-Oil 8
    - dual circuit: 300 cc/u; ND-Oil 8
  • Condenser:
    - All aluminum multi-flow
    - Power consumption: 560 watts
    - Fan: propeller; motor: Ferrite
  • Expansion valve: external equalizer
  • Evaporator:
    - Copper tube & aluminum plate finish
    - Fan: Sirocco; motor: Ferrite
    - Power consumption: 1120 watts
  • Dryer contents: Zeolite (cartridge type)
  • Receiver tank: horizontal
  • Piping: refrigerant rubber hose & copper pipes
  • Refrigerant: R134a

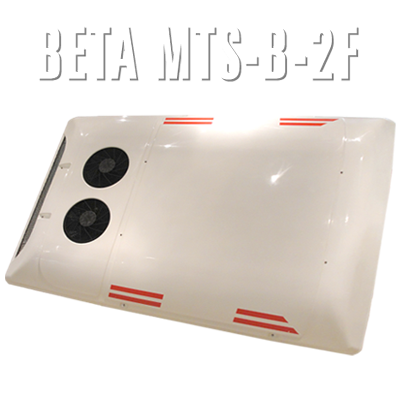

PERFECT FOR MID-SIZE VEHICLES

  • Medium size air conditioning unit
  • Installs on rooftop
  • Waterproof; suitable for all weather conditions
  • Blower speed can be manually controlled
  • Cooling capacity: 90,400 BTU/hr
  • Maximum air flow: 4,500 m/h (free flowing)
  • Power consumption: 51 amp (at 24 VDC)
  • Weight (approx.): 309 lbs
  • Size (approx.): 8 ½' L x 6' W
  • Compressor
    - 200 cc/unit
    - ND-Oil 8
  • Condenser:
    - All aluminum multi-flow
    - Power consumption: 420 watts
    - Fan: propeller; motor: Ferrite
  • Expansion valve: external equalizer
  • Evaporator:
    - Copper tube & aluminum plate finish
    - Fan: Sirocco; motor: Ferrite
    - Power consumption: 840 watts
  • Dryer contents: Zeolite (cartridge type)
  • Receiver tank: horizontal
  • Piping: refrigerant rubber hose & copper pipes
  • Refrigerant: R134a

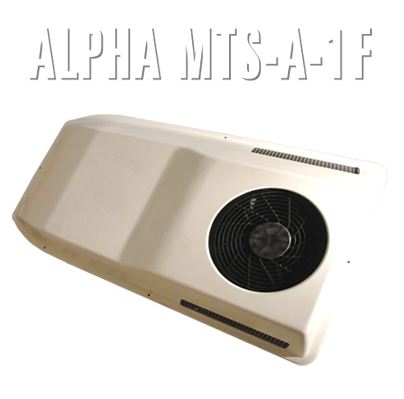

PERFECT FOR SMALLER VEHICLES

  • Small a/c unit, lightweight, & low noise level
  • Installs on ceiling or under floorboard
  • Waterproof; suitable for all conditions
  • Blower speed can be manually controlled
  • Cooling capacity: 48,000 BTU/hr
  • Maximum air flow: 1,800 m/h (free flowing)
  • Power consumption: 32 amp (at 24VDC)
  • Weight (approx.): 115 lbs (underfloor); 152 lbs (rooftop)
  • Size (approx.): 4 ½' L x 2' 4" W
  • Compressor: 300 cc/unit; ND-Oil 8
  • Condenser:
    - All aluminum (underfloor)
    - All aluminum multi-flow (rooftop)
    - Power consumption:380 watts (underfloor); 280 watts (rooftop)
    - Fan: propeller; motor: Ferrite

  • Expansion valve: diaphragm
  • Evaporator:
    - Copper tube & aluminum plate finish
    - Fan: Sirocco; motor: Ferrite
    - Power consumption: 390 watts
  • Dryer contents: Zeolite
  • Receiver tank:
    - Vertical (underfloor); horizontal (rooftop)
  • Refrigerant rubber hose & copper pipes
  • Refrigerant: R134a

Contact a sales rep today...

Not sure which MTS Cool Climate System is right for you? Call us at 1.800.249.6222 or click here to get in touch with us today.
